How Resolve If Machine Can't Automatic Bending


Roll forming machine for electrical box can't automatic bending how to do,
If encoder have problem, then should be change the encoder.
Encoder cable connect.
black,X01，，yelloXO0，，blue0v，，，brown24v

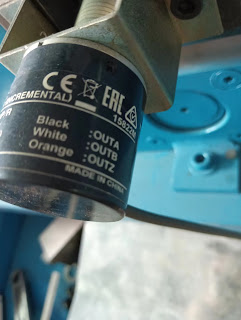

Encoder photo
Encoder photo data

Cable connect in PLC2 control cabinet


Pulse reset should be have value when roller running, about 1mm=pulse 7
