Large Electrical Cabinet Profile & Channel Roll Forming Machine


Large electrical cabinet profile & beam & rack & channel & holding etc metal parts roll forming machine manufacturers.
Frame electrical cabinet accessories combine to a large cabinet.


Big electrical box enclosure rack processure

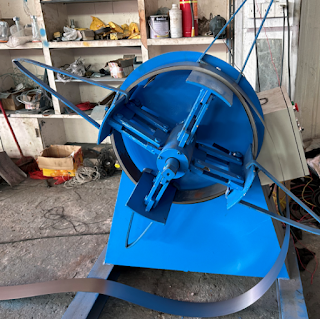

Uncoiler→ Straightening→Servo feeder→Hydraulic device  → Guide device → Roll forming machine → Shear device

Layout for reference only, exactly as per buyer drawing design



Electrical Cabinet Metal Frame Machine Technical Parameters

Item

Technology parameter

Material

Material

cold-roll strip,galvanized steel strip

Thickness

1.2mm

Coil Inner

Ф360—Ф510

Process

Form Speed

0-13m/min

Length

Not limit

Quality

Length Precision

L≤1000mm：±0.5㎜

Straight,

Deflection

L≤1000mm，Bend no more than 1mm；Deflection no more than 1mm

Forming size

As per design
