How To Making Rectangular Tube
Put the galvanized steel /carbon steel round pipe into the machine for roller pressing. After the roller pressing of the steel pipe is completed, people stand at the discharge port to see which side the steel pipe is bent.If it is to the right (this side of the motor as the left), in the bottom of the three straightening rollers are rolling, the second straightening roller (the last one of the discharge port) on the left to down, up to the right;If to the left, the right side of the second aligning upper roller is down, the left side up.If the steel pipe is warped up, the third straightening lower roller is lowered, and the adjustment range on both sides is the same. If it is still bent, the second straightening upper roller is lowered.Bend down, the second straightening upper roller to adjust, if still not straight, the third straightening lower roller to adjust again, the adjustment range on both sides is the same.(figure 6)
 |

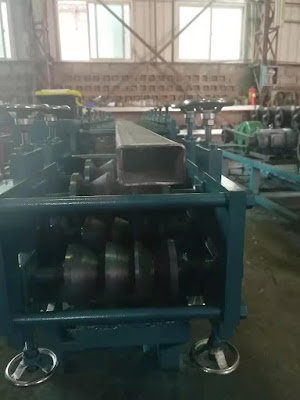

| Rectangle Tube Machine |
