  Din Rail Making Machine https://www.superdamc.com/ YX8-35   Servo Motor Roll Forming machine   一、 technical parameters No. ITEM PARAMETER REMARK 1 MATERIAL Type Cold-rolled strip steel, galvanized sheet   T.(mm) 0.8-1.2mm   Yield Strength (Mpa) Q235   2 Forming speed (m/min) 4-6m   3 Forming main power (KW) 3KW FYR 4 Hydraulic power (KW) 7.5KW FYR 5 Total Power           11.5 KW FYR 6 Voltage   AC380V ， 50Hz ， 3P     二、 process Uncoiler → roll forming machine → punching hole device   → hydraulic shear device (including knife) Uncoiler 1 、 Type ： Manual & not power 2 、 Parameter 1 ） Passive di

Metal tube roll forming machine start running. First, we must connect well the cable. Second, open the switch. Third, press running key, then put the round tube to roller station. It is so easy for operation tube roll forming machine. This video machine for making handrail tube with 3 sizes & shapes. Handrail tube made by Superda roll former Three types hand rail shapes were produced by one roll forming machine. Does it need to change the roller when production different handrail tubes. Handrail roll forming machine Not need, but below item is special, you can see handrail tube bottom is hollow shaped. this can't be desing in the roll station. So, Roll forming machine designer sepcial making a seperate roller station for making this convave effect tube. Custom tube shape roll station

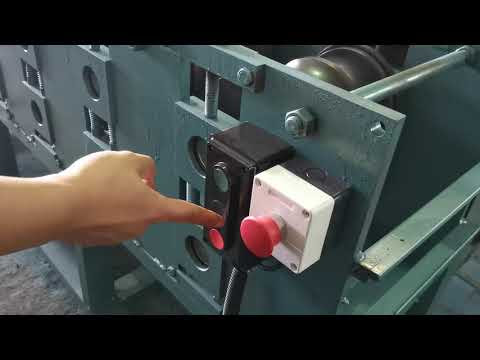

There are only 4 button in tube roll forming machine 1,Big Red button is emergency button. 2,Left side 3 small buttons, top is running, middle is backward, last one is stop. Very easy operation tube making machine process. https://www.superdamc.com/steel-tube-forming-machine/ Handrail Tube Process Testing Sample

Roll Forming Machine with punch hole This production line is equipment for production of distribution boxes. The strip coil to be processed is manually placed on the uncoiler, and then corrected and tensioned. After leveling, it enters the hydraulic pre-punching and punching notch, and is sent to the forming machine by the guide device to form. Under the frictional damping action of the forming roller and pressure roller, after entering the bending part at a linear speed of 0-13m, the box is cut and bent as required, and then manually packed away. This production line produces 2-3 enclosures per minute. the production box quantity speed according to different product specifications. 4 hydraulic punch station for electrical box before forming process Servo feeder, Hydraulic Hole Punch: 2KW servo system, precision feeder. Hydraulic punching 5.5kw-18.5 power device (die) and cutting device. hydraulic punch hole station https://www.superdamc.com

Din Rail Making Machine https://www.superdamc.com/ YX8-35   Servo Motor Roll Forming machine 一、 technical parameters No. ITEM PARAMETER REMARK 1 MATERIAL Type Cold-rolled strip steel, galvanized sheet T.(mm) 0.8-1.2mm Yield Strength (Mpa) Q235 2 Forming speed (m/min) 4-6m 3 Forming main power (KW) 3KW FYR 4 Hydraulic power (KW) 7.5KW FYR 5 Total Power           11.5 KW FYR 6 Voltage   AC380V ， 50Hz ， 3P 二、 process Uncoiler → roll forming machine → punching hole device   → hydraulic shear device (including knife) 三、 Plate drawing as below ： Metal part Drawing ： 四， Machines List Uncoiler 1 、 Type ： Manual & not power 2 、 Parameter 1 ） Passive discharge 2 ） Coil weight ： < 1T 3 ） Coil inner D. ：φ 470mm- φ 530mm 4 ） M
