Door Panel Roll Forming Machine Main Technology   Forming Roller ： 10 stations ， and add Rub-roll, To make sure the surface profile no scratches. Side Panel ： T.18mm ,A3 steel   Heavy duty 。       Rolling speeding: 5-8 m/min 。    Roller material ： #45 ， overall quenching, hardness HRC55-60 ℃ . Motor power ： 5.5KW 。     Main Roller ：￠ 65mm ， 45 # 。 Equipment base: 400 H type using welded steel plate. Transmission: chain drive. Example case of metal forming and bending profiles. Security: across the board with emergency stop buttons, easy to handle emergencies. to ensure that equipment and operator safety. And other gear in the chain. staff could easily lead to injury transmission section covered with protective cover. to ensure the safety of workers.

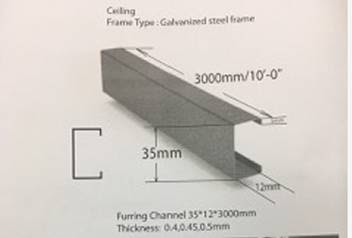

C Channel Roll Forming machine Item C12-35   Ⅰ, T echnical parameters No. ITEM PARAMETER 1 MATERIAL Type Cold-rolled strip steel, galvanized sheet T.(mm) 0.4-0.5mm Yield Strength G245MPa 2 Forming product Width 35mm 3 Forming speed (m/min) 10-15m 4 Forming main power (KW) 4 KW 5 Hydraulic power (KW) 3 KW 7 Voltage   AC380V ， 50Hz ， 3P Ⅱ , C Channel forming  process Simple Uncoiler → Guide device → roll forming machine   → shear device (including knife) → finished product rack Ⅲ , Drywall C Channel using drawing as below Section part Drawing Ⅳ ,  Machines List   一） Simple Uncoiler 1 、 Type ： Manual Expansion 2 、 Parameter 1 ） Passive discharge 2 ） Coil weight ： < 2T 3 ） Coil inner D. ：φ 450mm- φ 530mm 4 ） Max. Width. 200mm 5) ...
